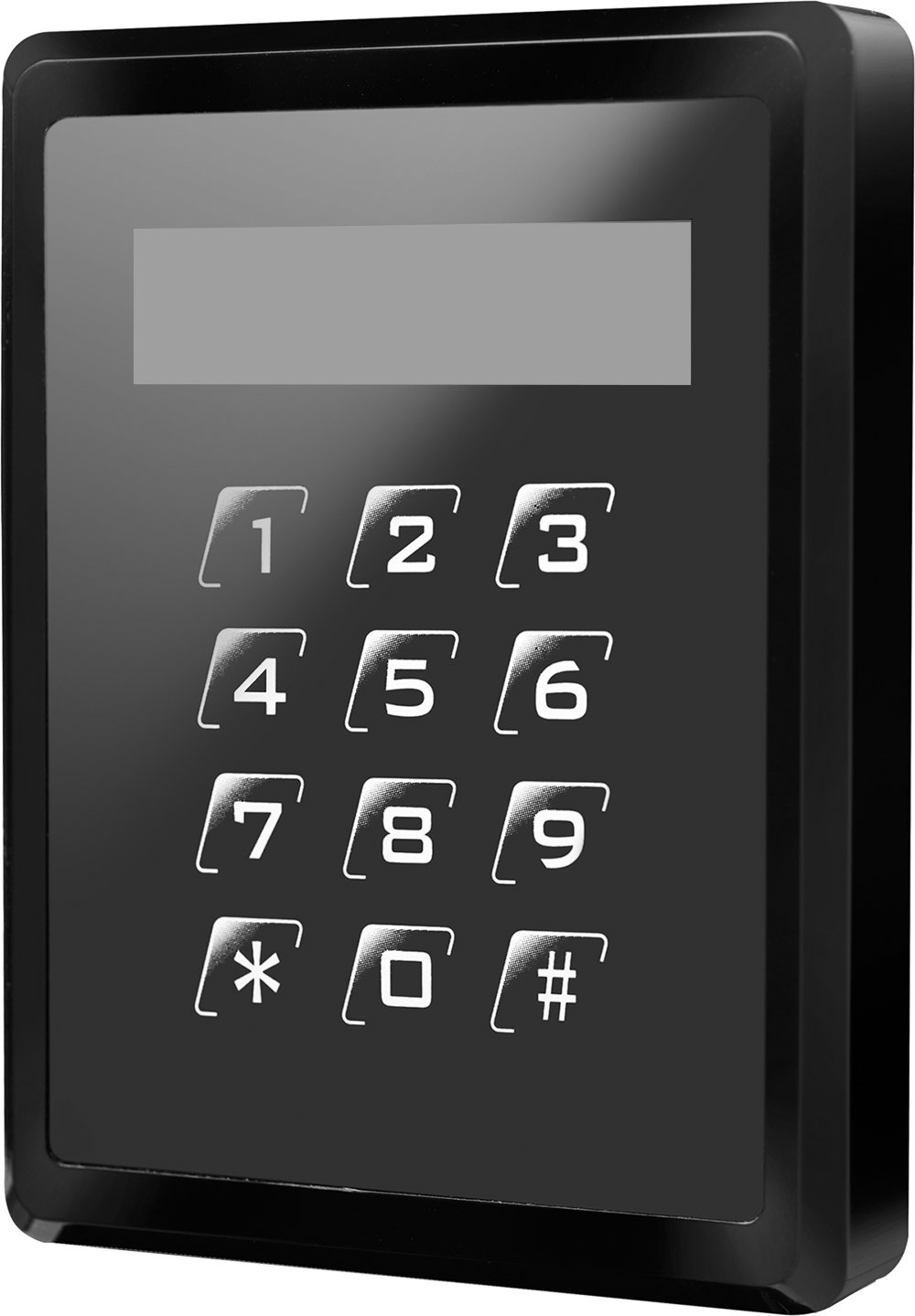

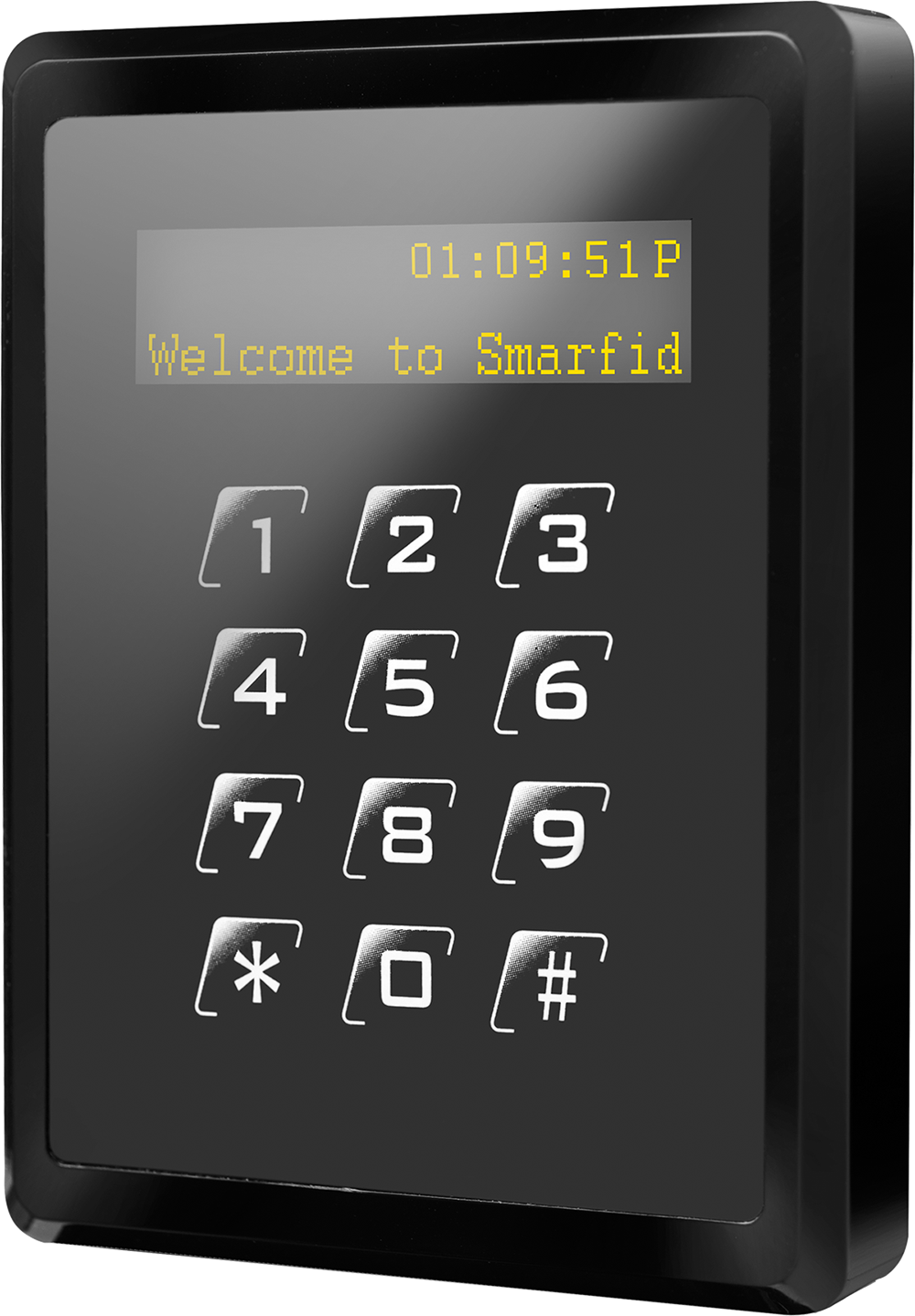

Display Magic

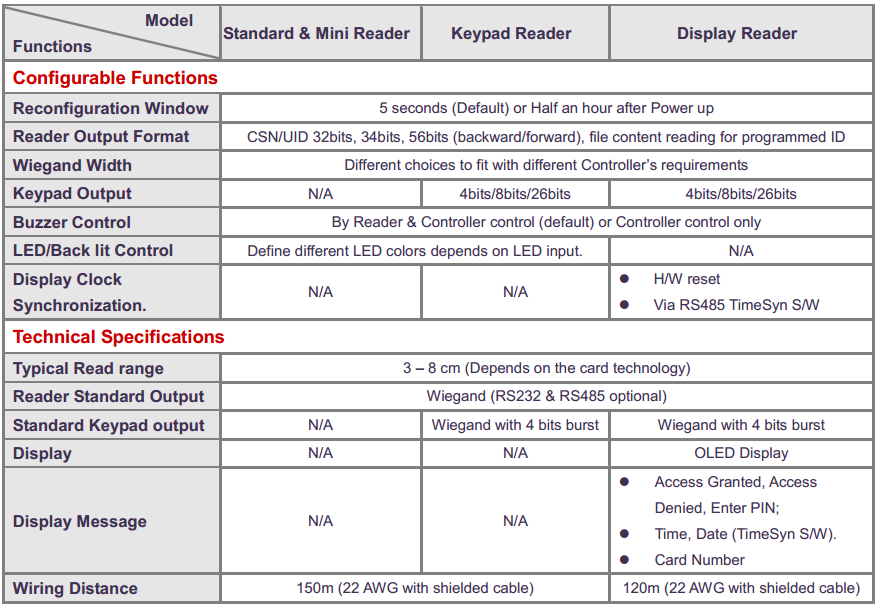

Basic parameters

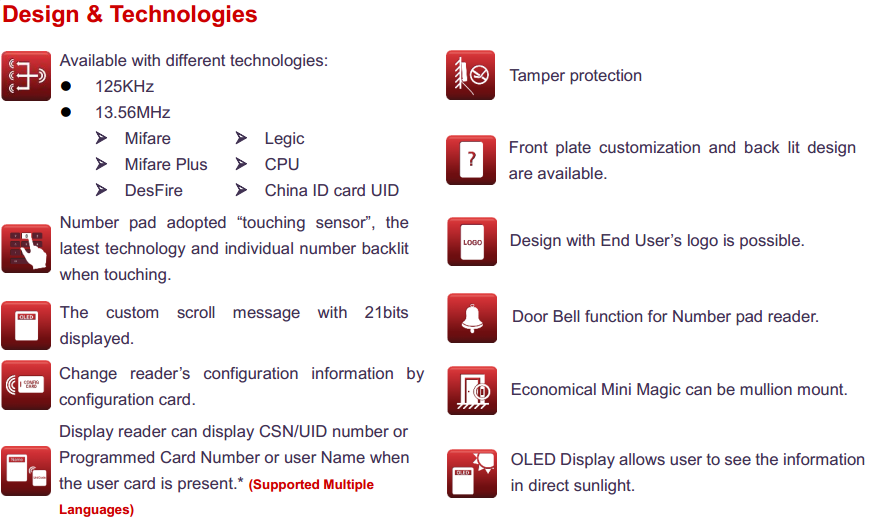

Reading Technology 125KHz/ Mifare/ Mifare Plus/ DesFire /Legic / CPU

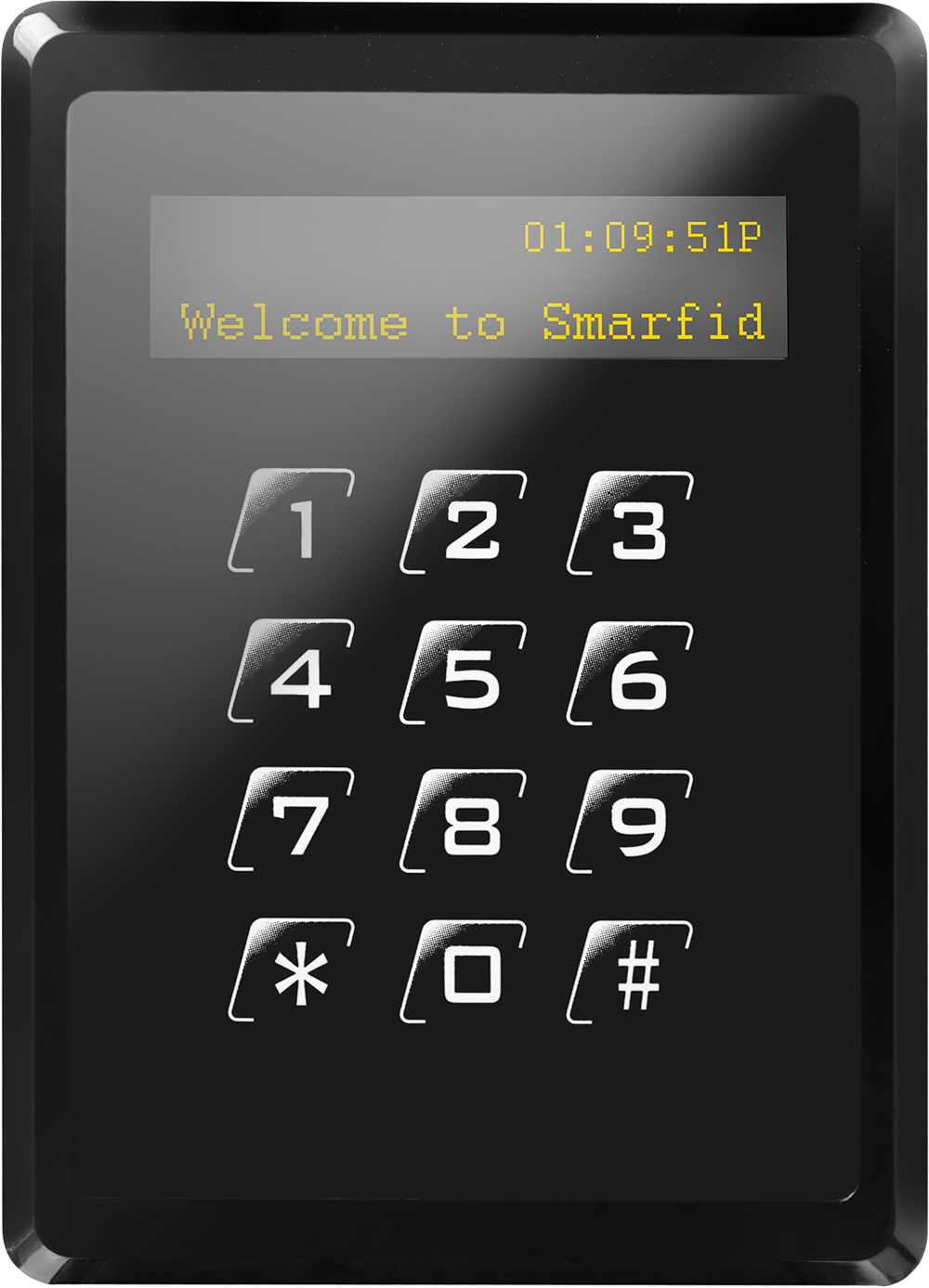

Displayed Info time/date/acess status/card no./name
Output Wiegand (RS232 & RS485 optional)

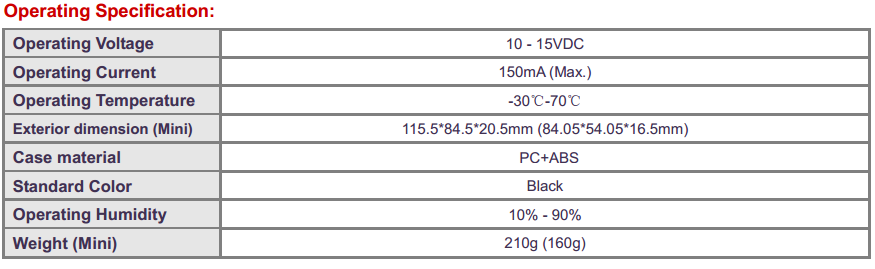

Operating Voltage 10 - 15VDC
Colour Black or White, Customizable
